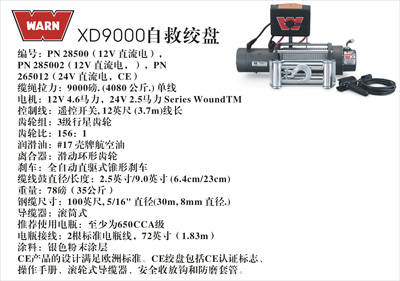

| Part Numbers: PN 28500 CE (12V DC) , PN 265012 CE (24V DC) |
 |
| Rated Line Pull: 9000 lbs. (4080 kgs.) single-line |
| Motor: 12V 4.6 hp, 24V 2.5 hp Series Wound TM |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 156:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |

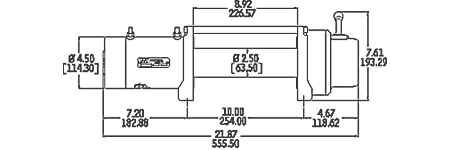

| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 78 lbs. (35 kgs.) |
|
| Wire Rope: 100', 5/16"diameter (30m, 8mm diameter) |
| Fairlead: Roller |
|
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Argent Powder Coat |
|
| Nuts/Bolts: PN 39625 |
|
| CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble. |
