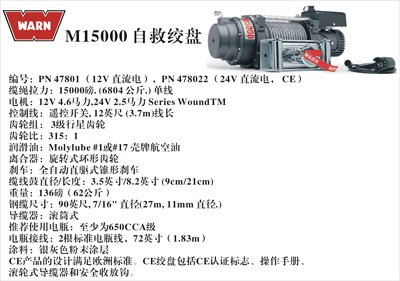

WARN(沃恩)M15000电动重载绞盘

WARN(沃恩)电动绞盘

欢迎采购其他品牌同类精品

	CHAMPION （冠军）

	MILE MARKER （麦尔·马克）

WARN(沃恩)M15000电动绞盘，全重62kg，采用4.6hp直流电机，单线拉力15000磅(6804公斤力)，遥控操作距离3.7m，直径11mm钢缆长27m。正常使用至少需要650 CCA（冷起动电流）的电池供应。整机体积556mm L. x 215mm D. x 279mm H.

When you work hard enough to need a really big truck, you'll want a winch with enough capacity to get the job done. The WARN M15000 winch boasts high strength carrier plates to handle the gear train stresses of a 15,000lb load. The gear ratio is 315:1, with 90 feet of 7/16" wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.

M15000 SPECS/PART NUMBERS
Part Numbers: PN 47801 CE (12V DC), PN 478022 CE (24V DC)
Rated Line Pull: 15000 lbs. (6804 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series Wound TM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 315:1
Lubrication: Molylube #1 or Aeroshell #17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 136lbs. (62kgs.)
Wire Rope: 90', 7/16" diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 61946
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead and safety hook.

12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	22.2(6.77)	67 amps	1/15000(6804)
2000(910)	7.27(2.22)	135 amps	2/13890(6300)
4000(1810)	5.41(1.65)	185 amps	3/11520(5225)
6000(2720)	4.43(1.35)	235 amps	4/9840(4463)
8000(3630)	3.79(1.16)	285 amps
10000(4540)	3.31(1.01)	335 amps
12000(5440)	2.93(.893)	385 amps
14000(6350)	2.61(.796)	435 amps
15000(6800)	2.48(.756)	460 amps

24V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)	Line Speed FT./min(M/min.)	Motor Current	Pull by layer layer/Lbs(Kgs.)
0	28(8.6)	24 amps	1/15000(6800)
2200(1000)	10.2(3.1)	85 amps	2/13900(6300)
4400(2000)	7.5(2.3)	115 amps	3/11400(5200)
6600(3000)	6.9(2.1)	142 amps	4/9700(4400)
8800(4000)	6.6(2.0)	170 amps
11000(5000)	6.2(1.9)	190 amps
13200(6000)	5.2(1.6)	210 amps
15000(6800)	4.3(1.3)	235 amps

Above performance specs are based on first layer of drum

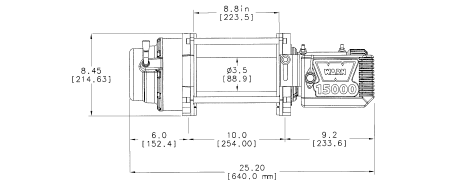

Winch Dimensions: 25.2" L. x 8.5" D. x 11" H. (556mm L. x 215mm D. x 279mm H.)

Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
