> Automotive Winch > Utility Duty Winch >DV-4500i

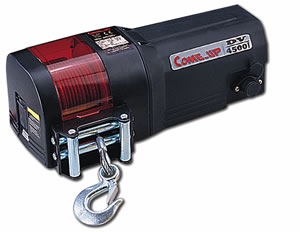

 Utility Duty Winch  DV-4500i


 FEATURES
● Power in and power out
● Sliding ramping freespool for rapid wire rope payout
● Circuit breakers shut off winch to prevent overheating of motor
● Weather-resistant plastic housing for extra durability
● Dynamic and mechanical brake holds full load
● Integrated solenoid pack for complete protection of wirings
● Compact and light weight allow a wide range of applications ontrailers and boats

 SPECIFICATION

 Line Pull: 2,041 kg / 4,500 lb
 Motor : 1,200 w /  1.6 hp permanent magnet
 Gear Train : 3stage planetary gears
 GearRatio : 170 : 1
 Freespool : sliding ramping
Brake : mechanical
 Wire Rope Size: 6.2 mm × 15.2 m (1/4" × 50')
 WireRope Type : galvanized aircraft A7 x 19
 Drum Barrel Diameter: 54 mm (2.1")
Distance between Flanges :83 mm ( 3.3")
 Mounting Bolt Pattern: 86 mm x 93 mm ( 3.39" x 3.66")
 *Limited Lifetime Warranty

 LINEPULL AND ROPE CAPACITY
Layer of Wire Rope Line Pull
kg / lb
Total Rope on the Drum
m / ft
1st2,041 / 4,500 2.4 / 8
2nd1,685 / 3,714 5.3 / 17.4
3rd1,433 / 3,159 8.6 / 28.1
4th1,247 / 2,750 12.5 / 41
5th1,104 / 2,43515.2 / 50


LINE SPEEDAND AMP. DRAW ( 1st layer of rope on the drum)
Line Pull
kg / lb
Line Speed
mpm / fpm
Amp. Draw
12V
Amp. Draw
24V
No Load 6.5 / 21.3 2510
454 / 1,000 5.0 / 16.4 11055
907 / 2,000 3.6 / 11.821095
1,134 / 2,500 3.2 / 10.5 240110
1,361 / 3,000 2.5 / 8.2 270120
1,588 / 3,500 1.8 / 5.9 290140
1,814 / 4,000 1.4 / 4.6 310155
2,041 / 4,500 0.4 / 1.3 330170

WARNING
Winches are not to be used for the lifting or moving of  persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

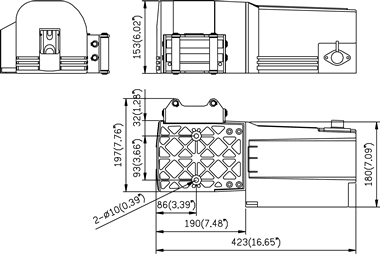

DIMENSIONS(mm/in)



 STANDARDACCESSORIES
● Wire rope with hook
● Remote control WA-0305
● 1.5m (5') battery lead
● Roller fairlead WA-0501
● Circuit breakers
● Handsaver Strap


OPTION ACCESSORIES
● Snatch block WA-0402


PACKAGE
Winch Weight : 14.2 kg / 31.2 lb
Gross Weight : 18.2 kg / 40 lb
Box Dimension :475×279×179 mm (18.7" × 11" ×7")
