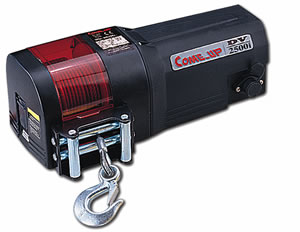

 Utility Duty Winch  DV-2500i


 FEATURES
● Power in and power out
● Sliding ramping freespool for rapid wire rope payout
● Circuit breakers shut off winch to prevent overheating of motor
● Weather-resistant plastic housing for extra durability
● Dynamic and mechanical brake holds full load
● Integrated solenoid pack for complete protection of wirings
● Compact and light weight allow a wide range of applications ontrailers and boats

 SPECIFICATION

 Line Pull: 1,134 kg / 2,500 lb
 Motor : 600 w /  0.8 hp permanent magnet
 Gear Train : 3stage planetary gears
 GearRatio : 170 : 1
 Freespool : sliding ramping
Brake : mechanical
 Wire Rope Size: 4.8 mm × 15.2 m (3/16" × 50')
 WireRope Type : galvanized aircraft A7 x 19
 Drum Barrel Diameter: 54 mm (2.1")
Distance between Flanges :83 mm ( 3.3")
 Mounting Bolt Pattern: 86 mm x 93 mm ( 3.39" x 3.66")
 *Limited Lifetime Warranty

 LINEPULL AND ROPE CAPACITY
Layer of Wire Rope Line Pull
kg / lb
Total Rope on the Drum
m / ft
1st1,134 / 2,500 3.2 / 10.4
2nd935 / 2,061 6.7 / 22
3rd795 / 1,753 10.9 / 35.8
4th693 / 1,527 15.2 / 50


LINE SPEEDAND AMP. DRAW ( 1st layer of rope on the drum)
Line Pull
kg / lb
Line Speed
mpm / fpm
Amp. Draw
12V
Amp. Draw 24V
No Load 5.0 / 16.4 30 10
454 / 1,000 3.5 / 11 8055
907 / 2,000 2.3 / 7.5 150115
1,134 / 2,500 1.3 / 4.2 200140

WARNING
Winches are not to be used for the lifting or moving of  persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

DIMENSIONS(mm/in)



 STANDARDACCESSORIES
● Wire rope with hook
● Remote control WA-0305
● 1.5m (5') battery lead
● Roller fairlead WA-0501
● Circuit breakers
● Handsaver Strap


OPTION ACCESSORIES
● Snatch block WA-0402


PACKAGE
Winch Weight : 13.5 kg / 29.7 lb
Gross Weight : 17.5 kg / 38.5 lb
Box Dimension :475×279×179 mm (18.7" × 11" ×7")
