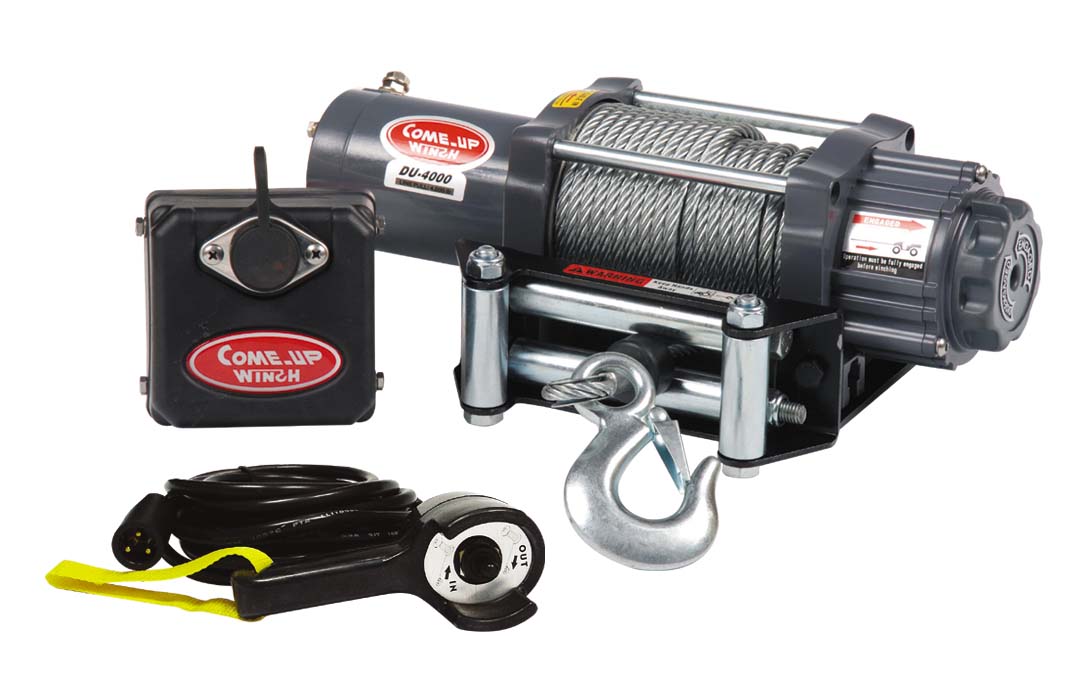

 Utility Duty Winch  DU-4000
 pic/DU-4000.jpg

 FEATURES
● Winch drum centerred to avoid tire interference and provide  streamlined appearance.
● High torque permanent magnet motor delivers high torque and power at lower amp.draw.
● 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
● Cam active freespool for fast wire rope payout.
● Automatic load-holding mechanical brake for strength and reliability.
● Heavy duty sealed solenoid gives better water resistance and lower amp.draw.

 SPECIFICATION

 Line Pull: 1,814 kg / 4,000 lb
 Motor 12V : 800 w /  1.0 hp
Motor 24V : 800 w /  1.0 hp permanent magnet
 Gear Train : 3stage planetary gears
 GearRatio : 184 : 1
 Freespool : cam activated
Brake : mechanical
 Wire Rope Size: 6.35 mm × 15.2 m (1/4" × 50')
 WireRope Type : galvanized aircraft A7 x 19
 Drum Barrel Diameter: 55 mm (2.2")
Distance between Flanges :119 mm ( 4.7")
 Mounting Bolt Pattern: 76 mm x 168 mm ( 3" x 6.6")
 *Limited Lifetime Warranty

 LINEPULL AND ROPE CAPACITY
Layer of Wire Rope Line Pull
kg / lb
Total Rope on the Drum
m / ft
1st1,814 / 4,000 3.3 / 10.8
2nd1,694 / 3,735 7.2 / 23.6
3rd1,446 / 3,188 11.9 / 39
4th1,261 / 2,780 15.2 / 50


LINE SPEEDAND AMP. DRAW ( 1st layer of rope on the drum)
Line Pull
kg / lb
Line Speed
mpm / fpm
Amp. Draw
12V
Amp. Draw 24V
No Load 6.0 / 19.7 20 15
230 / 500 3.9 / 12.8 4525
450 / 1,000 3.4 / 11.2 7035
680 / 1,500 3.1 / 10.2 9050
900 / 2,0002.9 / 9.512065
1,140 / 2,500 2.7 / 8.9 15080
1,363 / 3,0002.4 / 7.9180100
1,588 / 3,500 2.2 / 7.2 210125
1,814 / 4,0002.0 / 6.6230155

WARNING
Winches are not to be used for the lifting or moving of  persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

DIMENSIONS(mm/in)

 pic/DU-4000-3D.gif

 STANDARDACCESSORIES
● Detachable solenoid pack WA-0816
● Remote control WA-0310
● Wire rope with hook
● Roller fairlead WA-0512
● 96 cm (3.1") 6 gauge battery lead
● Circuit breakers


OPTION ACCESSORIES
● Snatch block WA-0402


PACKAGE
Winch Weight : 8 kg / 17.6 lb
Gross Weight : 14.5  kg / 32 lb
Box Dimension :391×285×140 mm (15.4" × 11.2" ×5.5")
