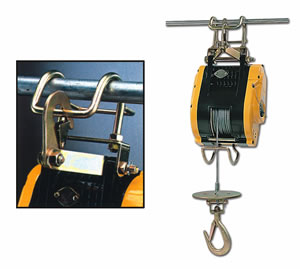

 Baby Winch  CWS-80


 FEATURES
● Lightweight and compact design
Allows easy installation
● Automatic upper limit switch
When rope disc touches the limit arm,
hoisting is automatically stopped
● Dynamic and mechanical brake
Provides instant and safe braking
● Can operate on standard domestic power supply
● Sensor arm automatically stops motor if the wire rope is under-wound
● Wire rope comes with a 60º weight hook with safety latch
● Motor rating IP44
● Heavy duty IP65 waterproof switch with emergency stop PB-316 as an option

 SPECIFICATION



Lifting Capacity (top layer) kg : 80



Lifting Speed m/min : 18 ~ 30

 Motor Output 110V kw x A : 0.8 x  8
Motor Output 220-240V kw x A : 0.8 x 4
Motor Type : series wound
  Brake : mechanical ratchet
  Lifting Height m : 23
 Wire Rope Φ mm×m : 4 x 24


Percentage Duty Cycle : 25% ED




WARNING
Winches are not to be used for the moving of persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

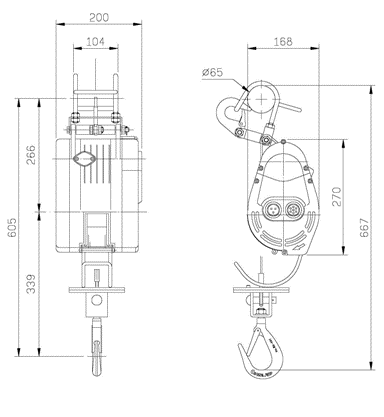

DIMENSIONS (mm)


STANDARDACCESSORIES
● 4 mm x 24 m wire rope
● Weight hook CHW-0032
● Pendant Switch CPB-313
● Switch cord 1.25 mm x 6C X 10 m
● Power lead 1.5 mm x 3C X 5 m and industry plug


OPTIONALACCESSORIES
● Remote control PB-316 assembly

PACKAGE
Winch Weight : 9 kg
Gross Weight : 18 Kg
Box Dimension : 355 × 355 × 270 mm
