> AC Winch >Compact Winch> CWL-80
  Compact Winch CWL-80
 pic/CWL-80.jpg

 FEATURES
● Lightweight and compact design for easy installation
● Dynamic and mechanical brake provides instant and safe braking
● Operates on standard household power supply
● Comes complete with wire rope and hook
● Enclosed drum flange prevents ropes becoming trapped between drum and support castings
● Comes complete with 3 m pendant control
● Comes complete with 3 m power lead and industrial plug
● Motor rating IP44
● Heavy duty IP65 waterproof switch with emergency stop PB-316 as an option

 SPECIFICATION

 Lifting Load kg: 80
 Speed m / min: 16 ~ 25
 Motor Output 110V kw x A : 0.3 x 6
Motor Output 220-240V kw x A : 0.3 x 3
Motor Type : series wound
  BrakingMethods For motor : Electromagnetic brake
Braking Methods For gear: Mechanical brake
  Maximum Lifting Height m: 23
  Wire Rope Φ mm×m : 4 x 24
 Drum Barrel  Diameter: 70 mm
Drum Flange  Diameter: 158 mm
Distance between Flanges: 46 mm
 Percentage Duty Cycle : 25% ED

1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10%
2. Use a snatch block for double line operation, to increase line pullby approximately 85%


 PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in KG

 Model
LEVEL SURFACE: 600
 10%6º: 320
 20%11 º: 240
 40%25º: 160
 60%31 º: 128
 80%39º: 108
   A gradient of 10% is a rise of one meter in ten meters
 The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary)

WARNING
Winches are not to be used for the moving of persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

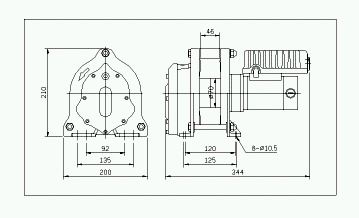

DIMENSIONS (mm)

 pic/CWL-80-3D.gif


STANDARDACCESSORIES
● 4 mm x 24 m wire rope
● Weight hook CHW-0031
● Pendant Switch CPB-313
● Switch cord 1.25 mm x 6C X 3 m
● Power lead 1.5 mm x 3C X 5 m and industry plug


OPTIONALACCESSORIES
● Remote control PB-316 assembly

PACKAGE
Winch Weight : 16 kg
Gross Weight : 18 Kg
Box Dimension : 375 × 330 × 240 mm
