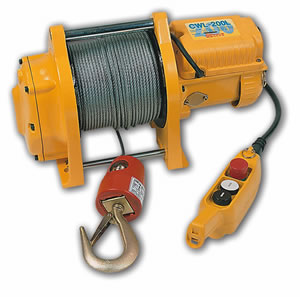

| | Longer Rope Compact Winch CWL-200L
|
| |  |
| | |
| | FEATURES
● Lightweight and compact design for easy installation
● Dynamic and mechanical brake provides instant and safe braking
● Operates on standard household power supply
● Comes complete with wire rope and hook
● Enclosed drum flange prevents ropes becoming trapped between drum and support castings
● Comes complete with 10 m pendant control
● Comes complete with 3 m power lead and industrial plug
● Motor rating IP44
● Heavy duty IP65 waterproof switch with emergency stop PB-316 as an option |
| | |
| | SPECIFICATION
| | Lifting Load kg: 200 | | | Speed m / min: 11 ~ 16 | | | Motor Output 110V kw x A : 1.2 x 12
Motor Output 220-240V kw x A : 1.2 x 6
Motor Type : series wound | | | BrakingMethods For motor : Electromagnetic brake
Braking Methods For gear: Mechanical brake | | | Maximum Lifting Height m: 70 | | | Wire Rope Φ mm×m : 5 x 71 | | | Drum Barrel Diameter: 95 mm
Drum Flange Diameter: 190 mm
Distance between Flanges: 147 mm | | | Percentage Duty Cycle : 25% ED |
|
| |
1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10%
2. Use a snatch block for double line operation, to increase line pullby approximately 85% |
| | |
| | |
| | PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in KG
| | Model
LEVEL SURFACE: 1,500 | | | 10%6º: 800 | | | 20%11 º:600 | | | 40%25º: 400 | | | 60%31 º:325 | | | 80%39º: 270 | | | A gradient of 10% is a rise of one meter in ten meters | | | The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary) |
|
| |
WARNING
Winches are not to be used for the moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

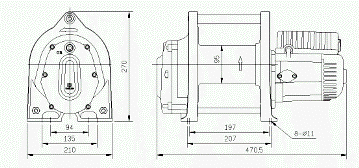

DIMENSIONS (mm) |
| |  |
| |
STANDARDACCESSORIES
● 5 mm x 71 m wire rope
● Weight hook CHW-0031
● Pendant Switch CPB-313
● Switch cord 1.25 mm2 x 6C X 10 m
● Power lead 1.5 mm2 x 3C X 3 m and industry plug
OPTIONALACCESSORIES
● Remote control PB-316 assembly
PACKAGE
● Winch Weight : 33 kg
● Gross Weight : 35 Kg
● Box Dimension : 545 × 395 × 350 mm |
| | |
| | |
