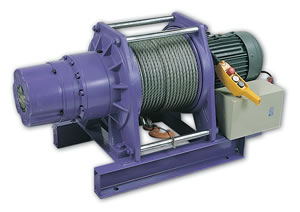

| Electric Winch CWG-30565
|
| |
| |
| FEATURES ● Heavy duty high efficiency ball bearings on all running surfaces ● Extra heavy duty machine ● Planetary gearing for maximum efficiency ● Cast steel foot mountings ● Fabricated steel drum ● Electromagnetic spring-applied fail safe brake ● Supplied on steel base plate ready to mount ● Motor to IP54 as standard ● Enclosed drum flange to prevent rope becoming trapped between drum and support castings ● 24V low voltage control as standard ● Switch PB-306 with emergency stop as an option |
| |
| SPECIFICATION
| Lifting capacity (top layer) : 1,100 kg | | Lifting Speed Option A : 14 ~ 25 m/min Option B : 9.2 ~ 16.4 m/min | | Motor Option A : 5.5 kw x 4 poles Option B : 3.8 kw x 6 poles | | Lifting height: 97 m | | Wire rope : 12 mm x 100 m | | | | Note : Above performance ratings are based on 50Hz supply. (60 Hz motor available as option resulting in a reduction oflifting capacities by 20% and a speed increase of 20%) |
|
| 1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10% 2. Use a snatch block for double line operation, to increase line pullby approximately 85%
|
| PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in kg
| Gradient% inclines / Angle in degrees
| Pulling capacity (kg) | | Level Surface | 7,700 | | 10% / 6º | 4,400 | | 20% / 11º | 3,250 | | 40% / 25º | 2,150 | | 60% / 31º | 1,700 | | 80% / 39º | 1,500 | A gradient of 10% is a rise of one meter in ten meters | | | | The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary) |
| WARNING Winches are not to be used for the moving of persons
WARRANTY Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
|

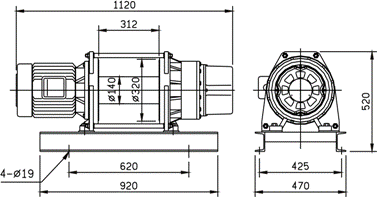

| DIMENSIONS(mm)
|
| |
| |
| |
| STANDARDACCESSORIES ● Wire rope w/safety hook ● Switch cord 1.25 mm2 x 3C X 3 m ● Power lead 3.5 mm2 x 4C X 0.3 m ● Low voltage control LV-320 ● Pendant Switch CPB-161 ● Base Plate
OPTIONALACCESSORIES ● Pendant control PB-306 assembly
PACKAGE ● Winch Weight : 250 kg ● Gross Weight : 285 kg ● Box Dimension : 1,290 × 650 × 680 mm |
| |
