| | Electric Winch CWG-30375
|
| |  |
| | |
| | FEATURES
● Heavy duty high efficiency ball bearings on all running surfaces
● Extra heavy duty machine
● Planetary gearing for maximum efficiency
● Cast steel foot mountings
● Fabricated steel drum
● Electromagnetic spring-applied fail safe brake
● Supplied on steel base plate ready to mount
● Motor to IP54 as standard
● Enclosed drum flange to prevent rope becoming trapped between drum and support castings
● 24V low voltage control as standard
● Switch PB-306 with emergency stop as an option |
| | |
| | SPECIFICATION
| | Lifting capacity (top layer) : 900 kg | | | Lifting Speed
Option A : 13 ~ 20.6 m/min
Option B : 8.5 ~ 13.5 m/min | | | Motor
Option A : 3.8 kw x 4 poles
Option B : 2.2 kw x 6 poles | | | Lifting height: 58 m | | | Wire rope : 10 mm x 60 m | | | | | | Note : Above performance ratings are based on 50Hz supply. (60 Hz motor available as option resulting in a reduction oflifting capacities by 20% and a speed increase of 20%) |
|
| |
1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10%
2. Use a snatch block for double line operation, to increase line pullby approximately 85%
|
| |
PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in kg
| | Gradient% inclines
/ Angle in degrees
| Pulling capacity (kg) | | Level Surface | 6,300 | | | 10% / 6º | 3,600 | | | 20% / 11º | 2,670 | | | 40% / 25º | 1,770 | | | 60% / 31º | 1,400 | | | 80% / 39º | 1,200 | | A gradient of 10% is a rise of one meter in ten meters | | | | |
The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary) |
|
WARNING
Winches are not to be used for the moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
|
| |

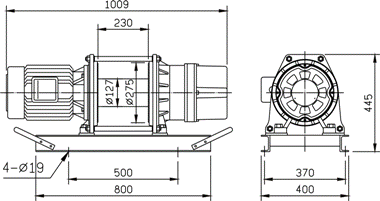

DIMENSIONS(mm)
|
| | |
| |  |
| | |
| | STANDARDACCESSORIES
● Wire rope w/safety hook
● Switch cord 1.25 mm2 x 3C X 3 m
● Power lead 3.5 mm2 x 4C X 0.3 m
● Low voltage control LV-320
● Pendant Switch CPB-161
● Base Plate
OPTIONALACCESSORIES
● Pendant control PB-306 assembly
PACKAGE
● Winch Weight : 185 kg
● Gross Weight : 225 kg
● Box Dimension : 1,140 × 590 × 620 mm |
| | |
