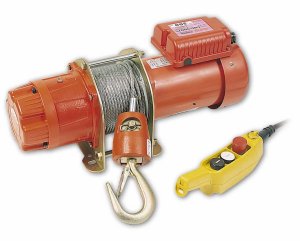

| | Electric Winch CWG-30075
|
| |  |
| | |
| | FEATURES
● Positive retention of wire rope on to drum
● Electromagnetic spring-applied fail safe brake
● Heavy duty high efficiency ball bearing on all running surfaces
● Planetary gearing for maximum mechanical efficiency
● Enclosed drum flanges
● Quiet running
● 24V low voltage control as an option
● Heavy duty IP65 waterproof switch PB-330 with emergency stop as an option |
| | |
| | SPECIFICATION
| | Lifting Capacity (top layer): 300 kg | | | First Layer Speed: 10 m/min
Top Layer Speed: 15 m/min
| | | Motor Rating IP44 :0.75 kw × 4 poles | | | MaximumLifting Height : 29 m | | | Wire Rope : 6 mm× 30 m | | | Drum Barrel Diameter: 94 mm
Drum Flange Diameter: 154 mm
Distance between Flanges: 110 mm | | | Note: Above performance ratings are based on 50 Hz supply. (60 Hz motoravailable as option resulting in a reduction of lifting capacities by20% and a speed increase of 20%) |
|
| |
1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10%
2. Use a snatch block for double line operation, to increase line pullby approximately 85%
|
| |
PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in kg
| | Gradient% inclines
/ Angle in degrees
| Pulling capacity (kg) | | Level Surface | 2,250 | | | 10% / 6º | 1,200 | | | 20% / 11º | 900 | | | 40% / 25º | 600 | | | 60% / 31º | 500 | | | 80% / 39º | 400 | | A gradient of 10% is a rise of one meter in ten meters | | | | |
The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary) |
|
WARNING
Winches are not to be used for the moving of persons
WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
|
| |

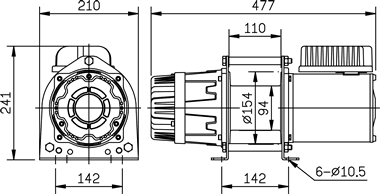

DIMENSIONS(mm)
|
| | |
| |  |
| | |
| | STANDARDACCESSORIES
● 6 mm x 30 m wire rope
● Weight hook CHW-0031
● Pendant Switch CPB-213
● Switch cord 1.25 mm2 x 5C X 3 m
● Power lead 3.5 mm2 x 4C X 0.3 m
OPTIONALACCESSORIES
● Remote control PB-306 assembly
● Low voltage control LV-320
PACKAGE
● Winch Weight : 32 kg
● Gross Weight : 34 kg
● Box Dimension : 635 × 296 ×290 mm |
| | |
