| | | | | | | | > Heavy Duty Hoist > DHC-1200 |  | | | Heavy Duty Hoist DHC-1200 | | |  | | | | | | FEATURES
● Heavy duty series wound motor gives high torque and fast linespeed
● Detachable control box mounted elsewhere on the vehicle
● High efficiency 3-stage planetary gear train for greater pulling force
● The U.S. Germany , U.K., France, etc patents automatic, full-loadcone brake hold plus auxiliary inverted current brake hold full load.
● In compliance with standard of ANSI B30.5 D/d >=18, and wire rope safety factory >=3.5
● Provides an answer to the health and safety recommendations for manual lifiting | | | | | | SPECIFICATION
| | Lifting Load : 545kg / 1,200 lb | | | Motor
12V DC : 900 w / 1.2 hp
24V DC : 600 w / 0.8hp | | | Gear Train: 3 stage planetary gears
Gear Ratio : 216 : 1 | | Brake: automatic, full load cone brake PLUS auxiliary inverted current brake | | | Wire Rope Size: 4.8 mm × 18.3 m (3/16" ×60') | | | Wire Rope Type : galvanized aircraft A7 x 19 | | | Drum Barrel Diameter : 89 mm (3.5")
Distance between Flanges : 72.7 mm (2.86") | | | Mounting Bolt Pattern :101.6 mm x 114 mm (4" x 4.5") |
| | | | | | LIFTINGLOAD, LINE SPEED AND ROPE CAPACITY
| Layer of Wire Rope | Lifting Load
kg / lb | Line Speed mpm/fpm | Total Ropeon the Drum m / ft | | 1st | 545 / 1,200 | 5.5 / 18 | 4.2 / 13.8 | | 2nd | 494 / 1,089 | 6.1 / 20.0 | 8.8 / 28.9 | | 3rd | 452 / 996 | 6.6 / 21.7 | 13.8 / 45.3 | | 4th | 417 / 919 | 7.2 / 23.6 | 18.3 / 60.0 |
LINE SPEEDAND AMP. DRAW ( 1st layer of wire rope on the drum)
Lifting Load
kg / lb | Line Speed
mpm / fpm | Amp. Draw 12V | Amp. Draw 24V | Perccentage Duty Cycle
%ED
| | 0 / 0 | 12.5 / 41.0 | 60 | 35 | 25 | | 110 / 250 | 9.5 / 31.2 | 75 | 50 | 23 | | 230 / 500 | 8.0 / 26.2 | 100 | 60 | 20 | | 340 / 750 | 7.0 / 23.0 | 120 | 68 | 18 | | 450 / 1,000 | 6.0 / 19.7 | 135 | 75 | 15 | | 545 / 1,200 | 5.5 / 18.0 | 150 | 80 | 13 |
| |
WARNING
Hoists are not to be used for the lifting or moving of persons
WARRANTY
Each new hoist is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase
| | |

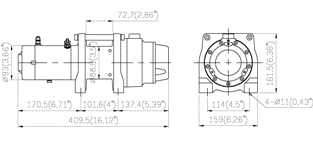

DIMENSIONS(mm/in) | | |  | | | | | | STANDARDACCESSORIES
● Wire rope with hook
● Remote control WA-0310
● Detachable solenoid pack WA-0817
PACKAGE
● Winch weight : 13.8 kg / 30.4 lb
● Gross Weight : 22 kg / 48.4 lb
● Box Dimension : 440 x 287 x 193 mm(17.3" x 11.3" x 7.6") | | | | | | |
| |
| |
