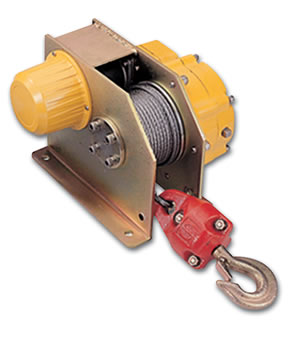

| | | | | | | | > Heavy Duty Hoist> DH-500 |  | | | Heavy Duty Hoist DH-500 | | |  | | | | | | FEATURES
● 12 or 24 volt reversible permanent magnet motor
● Low amp. draw and low sound level
● Smooth running over heavy-duty the speed range
● 25% ED duty cycle and maximum starting frequency of 60 times/h at 63%load
● A ratchet brake securely hold the load
● 12V for DH-500
| | | | | | SPECIFICATION
| | Lifting Loadl : 500kg / 1,102 lb | | | Speed: 4 mpm / 13 fpm | | | Circuit Breaker :50A | | | Motor :300 w / 0.14 hp | | | Gear Ratio :276 : 1 | | | Wire Rope Size: 6.2 mm × 12 m (1/4" ×39') | | | Wire Rope Type : galvanized A7 × 9 | | | Drum Size: 95 mm × 76 mm (3.7" × 3") |
| | | | | | DIMENSIONS(mm) | | | | | |  | | |
| | | STANDARDACCESSORIES
● Wire rope with weight hook
● Remote switch w/ 4.4 m (14.4') cord
● Control box
PACKAGE
● Winch Weight : 27 kg / 59.5 lb
● Gross Weight : 33 kg / 72.8 lb
● Box Dimension : 330 x 330 x 275 mm(13" x 13" x 10.8") | | | | | | | | | |
| |
| | | | | | | |
|
|
