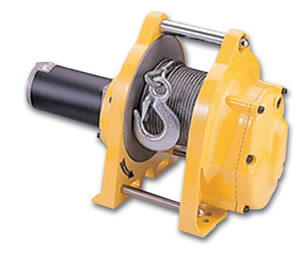

| | | | | | | | > Heavy Duty Hoist> DH-120A |  | | | DHeavy Duty Hoist H-120A | | |  | | | | | | FEATURES
● 12 or 24 volt reversible permanent magnet motor
● Low amp. draw and low sound level
● Smooth running over heavy-duty the speed range
● 25% ED duty cycle and maximum starting frequency of 150 times/h at63% load
● A ratchet brake securely hold the load
● 24V for DH-120A | | | | | | SPECIFICATION
| | Lifting Loadl : 120kg / 265 lb | | | Speed: 5 mpm / 16.4 fpm | | | Circuit Breaker :10 A | | | Motor :100 w / 0.14 hp | | | Gear Ratio :56 : 1 | | | Wire Rope Size: 4 mm × 5 m (5/32" × 16') | | | Wire Rope Type : galvanized 6 × 19 | | | Drum Size: 70 mm× 46 mm (2.8" × 1.8") |
| | | | | | DIMENSIONS(mm) | | | | | |  | | |
| | | STANDARDACCESSORIES
● Wire rope with hook
● Remote switch w/ 4.4 m (14.4') cord
PACKAGE
● Winch Weight : 17 kg / 37.4 lb
● Gross Weight : 19 kg / 41.9 lb
● Box Dimension : 356 x 230 x 210 mm(14.0" x 9.1" x 8.3") | | | | | | | | | |
| |
| | | | | | | |
|
|
