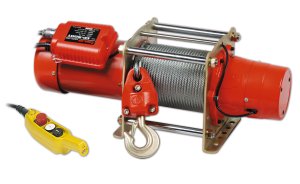

  Electric Winch CP-500T
 pic/CP-500T.jpg

 FEATURES
● Lightweight and compact design for easy installation
● Electromagnetic spring-applied fail safe brake
● Planetary gears for efficiency
● Cast steel foot mountings
● Heavy duty high efficiency ball bearing on all running surfaces
● Enclosed drum flange to prevent rope becoming trapped between drum and support castings
● Quiet running

 SPECIFICATION

 Lifting Capacity (top layer): 500 kg
 First Layer Speed: 11.6 m/min
Top Layer Speed: 18.3 m/min
 Motor Rating IP44 :1.8 kw × 4 poles
 MaximumLifting Height : 58 m
 Wire Rope : 7 mm× 60 m
 Drum Barrel  Diameter: 102 mm
Drum Flange  Diameter: 180 mm
Distance between Flanges: 220 mm
 Mounting bolt pattern mm: 267 x 156
 Note: Above performance ratings are based on 50 Hz supply. (60 Hz motoravailable as option resulting in a reduction of lifting capacities by20% and a speed increase of 20%)

1. All ratings are based on thetop layer. For each layer reduction on the drum pulling capacity isincreased by 10%
2. Use a snatch block for double line operation, to increase line pullby approximately 85%

PULLINGLOAD CAPACITY FOR VARIOUS INCLINES in kg


 Gradient% inclines
/ A
ngle in degrees
Pulling capacity (kg)
Level Surface3,700
 10% / 6º    2,000
 20% / 11º1,500
 40% / 25º1,000
 60% / 31º800
 80% / 39º700
      A gradient of 10% is a rise of one meter in ten meters

The pulling capacities are based on a free pulling load and 15% hasbeen allowed for friction (specific applications will vary)

WARNING
Winches are not to be used for the moving of persons

WARRANTY
Each new winch is guaranteedagainst defects in workmanship and material defects for a period oftwelve months from date of purchase

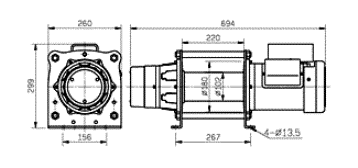

DIMENSIONS (mm)


 pic/CP-500-3D.gif

 STANDARDACCESSORIES
● 7 mm x 60 m wire rope
● Weight hook CHW-0005
● Pendant Switch CPB-213
● Switch cord 3.5 mm x 5C X 6 m
● Power lead 3.5 mm x 3C X 0.3 m

OPTIONALACCESSORIES
● Remote control PB-330 assembly
● Low voltage control LV-320

PACKAGE
Winch Weight : 54 kg
Gross Weight : 56 kg
Box Dimension : 730 × 262 × 350 mm
